LR-BS-S2 Machine automatique de scellage de boîtes de matelas

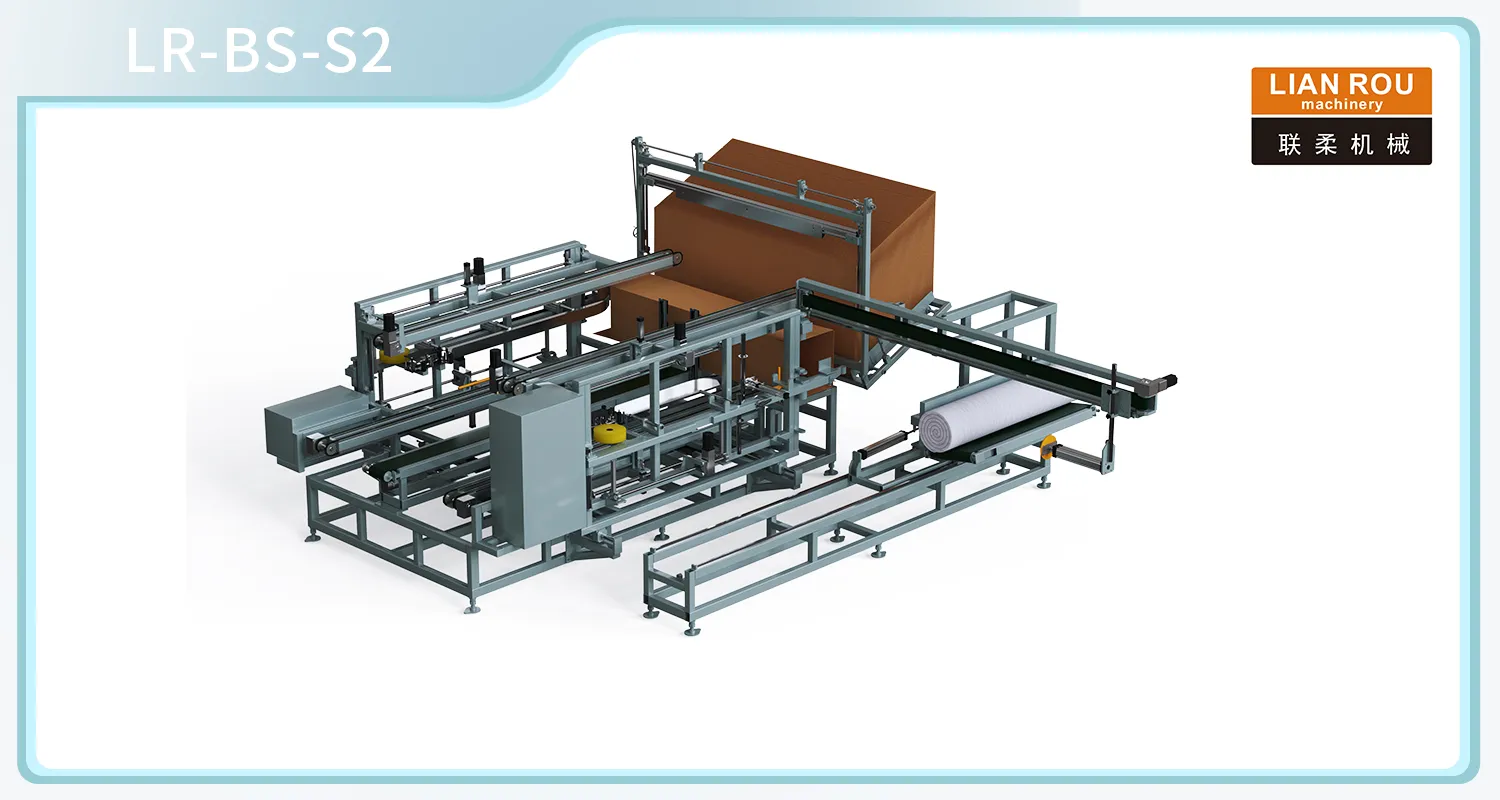

Automatic Mattress Box Sealing Machine

Model: LR-BS-S2

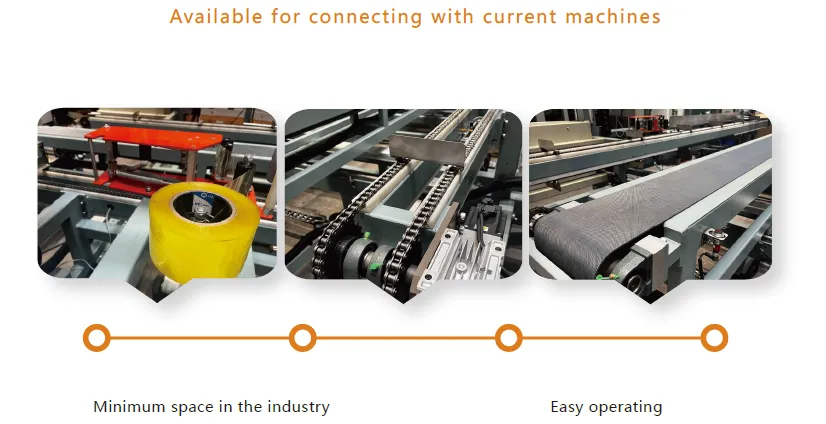

Easily conneting with current machines

Mininum space in the industry

Easy operating

Lianrou Patent Product

Technical Specification

Application

Pocket Spring mattress without border frame

foam mattress or latex mattress

Packing method

Roll-packing, one unit in one roll

Packing material

PE film

Compressing or not

YES

Speed25-35 seconds/unitAir ConsumptionApprox. 0.5 m³/min.

Air Pressure

0.6-0.7 mpa

Power Consumption in total

5KW

Voltage

3AC 380V

Frequency

50/60Hz

Input current

10A

Cable Section

3*6mm² + 2*4mm²

Working Temperature

+5°C～+35°C

Weight

≈3500KG

Consumption Material Data

Type

Sealing Tape

Outer dia. of packing materialMax. 300mm

Width of packing material

65-80mm

General Data

Mattress Width

Max. 2000mm

Mattress Length

Max. 2200mm

Diameter of finished roll220-500mm

Machine Highlights

Bag Spring Bed Core Display
